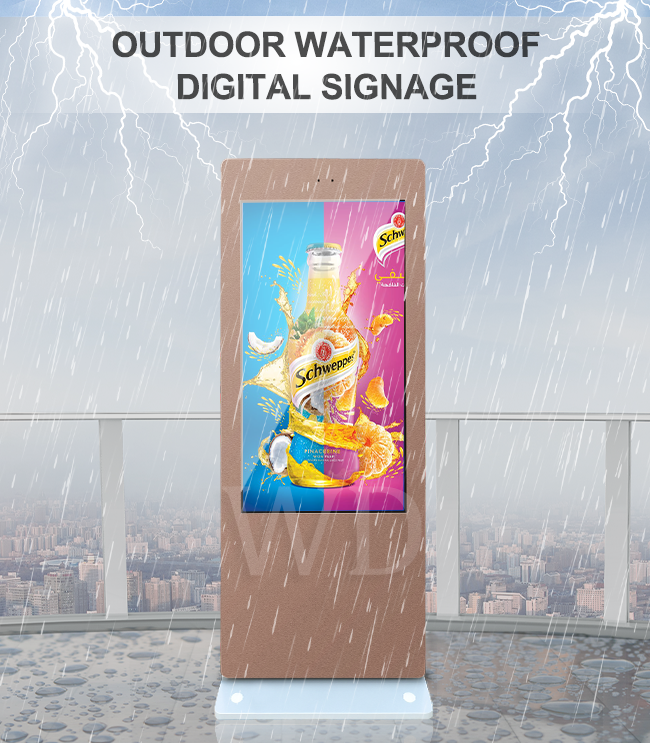

Timer on/ off Outdoor free standing Digital Display Rain Resistant
Anti-explosion
Outdoor series LCD displays face people in outdoor public places
which are ideal for marketing purpose to improve customer
experience or brand building. It present business messaging 24/7
even when the signage is exposed to direct or indirect sunlight, or
to harsh environmental conditions such as dust, water and heat.
Specification
Screen Size | 49” ( other size as per request) |
LCD Panel | TFT-LCD, LED backlight , non-touching |
Protection grade | IP55 / IP65 |
Management | Content Management Software (CMS) |
Interface | USB * 2 / RG45 (HDMI / RS232 /TF /4G module optional) |
Temperature control | Intelligent fans cooling system / Air conditioning system |
Brightness control | Automatic light sensor system |
Display ratio | 16:9 |
Max resolution | 1920x1080px, 3840x2160px |
Brightness | 2000 nits ( 1500 - 4000 nits available) |
Contrast ratio | 5000:1 |
Response time | 5ms |
Dot pitch | 0.53(H)X0.53(V)mm |
Colour | 16.7M |
Viewing angle | 178°(H)/178°(V) |
Video format | MPG, MPG-1, MPG-2, MPG-4, AVI, MP4, TS, MKV, WMV |
Image Format | GIF, JPEG, PNG, BMP |
Temperature | -30℃ to 50℃ (Additional heater unit ) |
Humidity | 10~90%RH |
Housing material | Sheet metal +tempered glass +Aluminum frame |
Customization | Color, Size, LOGO, System , Extended function( webcam,printer,temperature camera...) |
Warranty | 1 year |
Content management software Feature
1) Display management (easy registration, remote management,
2) Remotely control & shutdown of the screens
3) Program management( manage contents like videos ,
images,social&news feed, weather, presentation, collaboration
and many more remotely) .
4) Layout management (Make layout and add contents to create
playlist)
5) Scheduling ( preset daily, weekly , monthly,Designed to run
24×7.)
6) User management ( manage users and assign roles)
7) Group management ( authorize multi-users flexibly )
8) Multiple Playlist.Loop play.

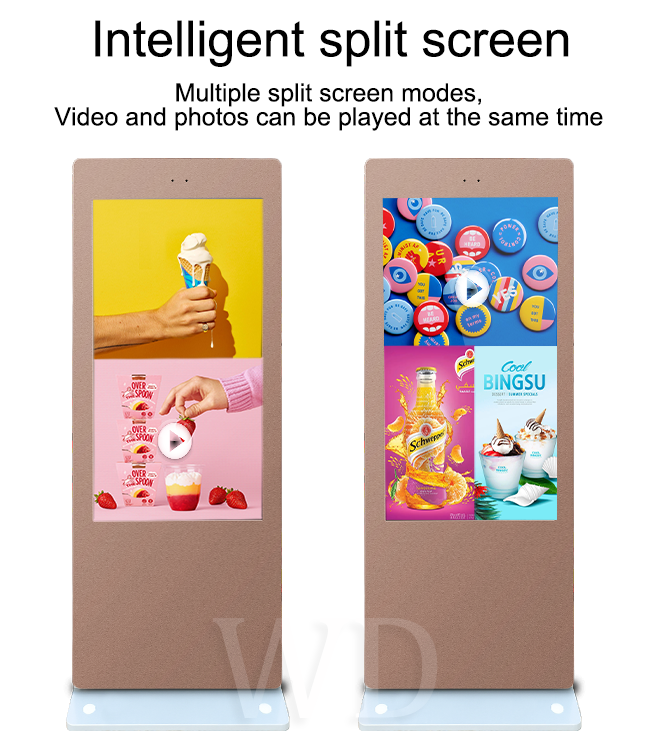

9) User-defined screen layout (Split Screen or full screen,
Template Design).
10) Content Update in real time.
11) Integration with WIFI /LAN / WAN or Intranet / Internet /4G
Connectivity.
12) Support upgrading system remotely.
13) Support monitor screens’ real-time status remotely online.
